AWPIT01

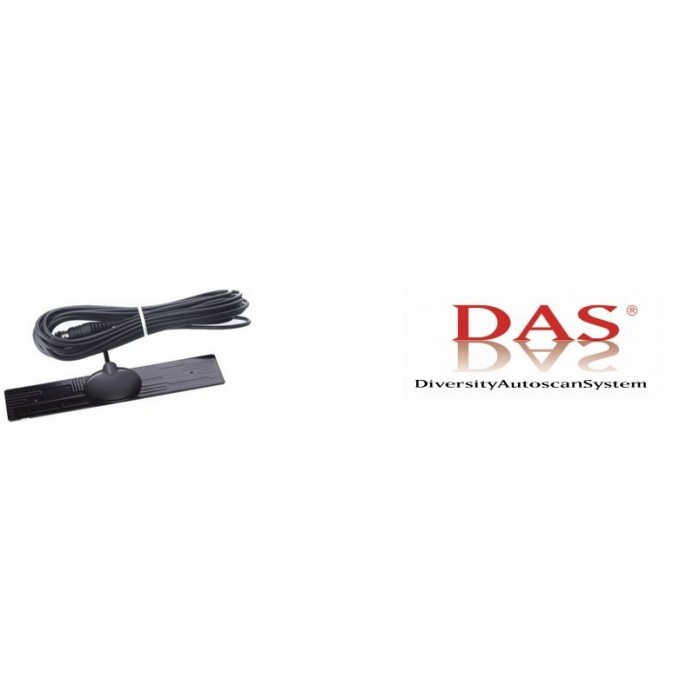

Antenna amplificata per tuner DVB-T DAS

Antenna attiva

Receiving frequency range:
VHF-H 172-240 MHz
UHF 470-862 MHz
Supply voltage: 5V +/- 10% VDC (from coaxial cable)
Current consumption: 35 mA (typ.)
Operating temperature range: -20 - +80 °C
Storage temperature range: -40 - +85 °C
Gain: 20dB (typ), 15dB (min.)
V.S.W.R.: < 1.5
Output impedance: 75 ohm
Coaxial cable: low loss wire 5m (length)
Connector: F plug
Power indicator: yellow Led
Antenna size: 140 x 26 x 8 mm
Homologation CE
Homologation ”e”

29,28 €
Tasse incluse
